Pella® 250 Series Vinyl Sliding Patio Door

Add a strong and durable vinyl patio door to your home with innovative and enhanced security and privacy features for more peace of mind. Personalize this low-maintenance design with our most popular features and options, including triple-pane glass to maximize energy efficiency and reduce outside noises.

Choose from three styles offering unique features and options:

[C] Classic
[S] Standard
[P] Premium

Talk to a Pella Rep for Pricing

Pella 250 Series Sliding Patio Door Features

    • [C] Classic

    Integrated Footbolt for Enhanced Security

    • [C]Classic
    • [S]Standard
    • [P]Premium

    Exceptional Long-Term Performance

    • [P] Premium

    Modern Black Frame Finish Available

Design Options

Solid-color frames feature a single color on both the interior and exterior. Dual-color frames have White on the interior with Brown or Black on the exterior.

Solid-Color Frames

    • [C]
    • [S]
    • [P]
    a white-colored swatch

      White

      • [C]
      an almond-colored swatch

        Almond

        • [C]
        a fossil-colored swatch

          Fossil

          • [S]
          • [P]
          a beige-colored swatch

            Beige

            • [P]
            a black-colored swatch

              Black

            Frame

            • Less visible sash corner seams – typical vinyl has build up.
            • Full-frame profile with edge detailing.
            • Our precision welding process helps prevent warping and twisting over time like ordinary vinyl can – helping eliminate "vinyl smile."
            • Reinforced window frames are 52% stronger than ordinary vinyl.8
            • Multi-chambered, fully-welded sash and frame improve strength and thermal performance and reduce sound transmission.
            • Products are tested in state-of-the-art facilities.

            Downloads & Specifications

            Design, Performance & Size Tables

            Specifications

            2D Cross Section

            2D Elevation

            3D & BIM

            Product Literature

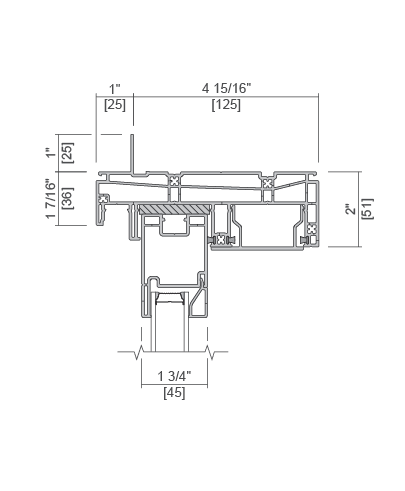

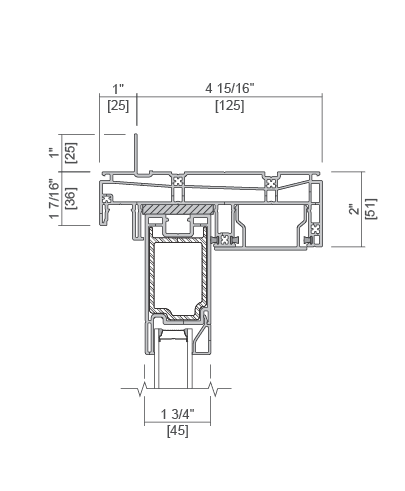

            • cross section of a pella 250 series sliding door

              Pella 250 Series Sliding Patio Door Specs & Install Details

              • Two-panel sliding patio door is also available factory-assembled. Three- and four-panel sliding patio doors are available with a knockdown frame only.
              • Energy-efficient dual- and triple-pane options available
              • Stiles and rails are 2-3/4” on standard designs and 3-3/4" on premium designs
              • Designed with aluminum reinforcements in the venting panels for long-term performance
              • Installation options vary by product type and include Block Frame, 1” Nail Fin, 1-3/8” Nail Fin, Integral Fin, Fin with J-Channel, Flush Flange, 5/8 Flange Frame and 3" Flat Casing
              Door Panel
              [C]

              Door Panel consists of extruded rigid uPVC [with optional foam insulation].

              [S]

              2-3/4” x 1-3/4" vinyl panel with internal aluminum reinforcement.

              [P]

              3-3/4” x 1-3/4" vinyl panel with internal aluminum reinforcement.

              Weatherstripping

              Fin-type pile around perimeter of panels.

              Hardware
              [C] Classic
              • Interior handle and thumb-lock; finish is [[White] [Almond] [Fossil] to match interior finish] [Satin Nickel] [Oil-Rubbed Bronze].
              • Exterior handle finish Matches exterior finish.
              [S] Standard
              • Interior handle and thumb-lock; finish is [[White] [Beige] to match interior finish] [Black].
              • Exterior handle with optional keylock; finish is [[White] [Beige] [Black] to match exterior finish].
              • Optional upgraded hardware; Signature [[White] [Beige] [Black] [Satin Nickel] with optional keylock].
              [P] Premium
              • Signature handle; finish is [[White] [Beige] [Black] to match interior and exterior finish]] [Satin Nickel] with optional keylock.
              • Optional upgraded hardware; Flush [[White] [Black] [Satin Nickel]] with optional keylock.
              Interior/Exterior
              [C] Classic

              Frame and panel members are [[White] [Almond] [Fossil] with integral color extruded throughout the profiles] [[Brown] [Black] laminate exterior, consisting of a solar reflective coating exceeding AAMA 307 test requirements, with White integral color extruded throughout the profiles on the interior].

              [S] Standard

              Frame and panel members are [[White] [Beige] with integral color extruded throughout the profiles] [[Brown] [Black] laminate exterior, with White integral color extruded throughout the profiles on the interior].

              [P] Premium
              • Frame and panel members are [[White] [Beige] with integral color extruded throughout the profiles].
              • [Brown] laminate exterior, with White integral color extruded throughout the profiles on the interior.
              • [Black] laminate exterior, with optional [Black] laminate interior or White integral color extruded throughout the profiles on the interior.
              Frame

              Interior and exterior frame surfaces are extruded rigid uPVC.

              Frequently Asked Questions

              FAQs about My Product

              FAQs about Purchasing Online

              See All Patio Door FAQs
              250-sliding-door-beauty-couches

                Pella 250 Series

                Pella 250 Series sliding patio doors provide exceptional energy and weather performance for your home. We test our insulating glass from –20ºF to 140ºF to help ensure the seals in the door perform, even in extreme temperatures. And with insulating air chambers and optional triple-pane glass and foam insulation, you can trust these patio doors to help keep your home comfortable.
