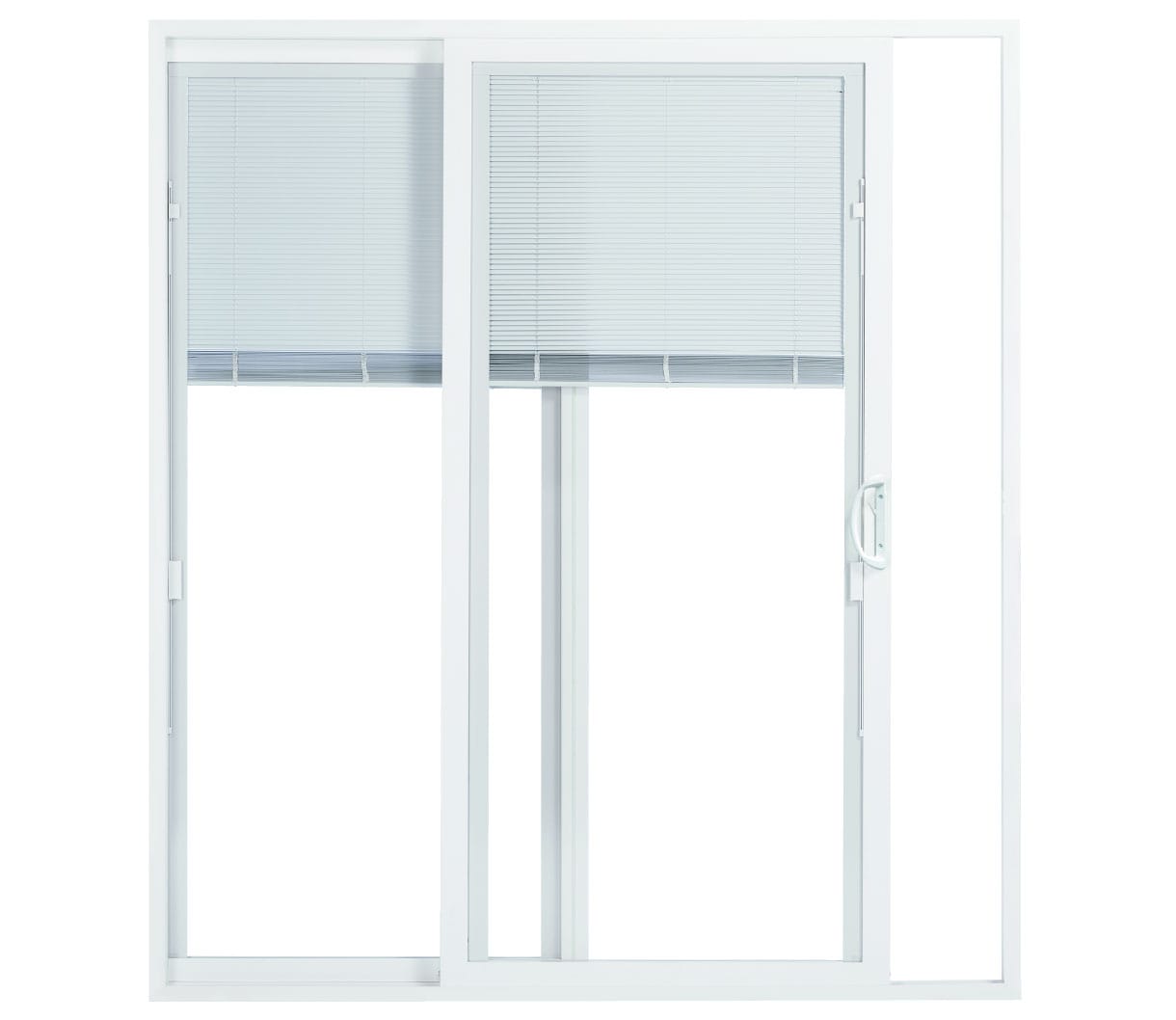

Encompass by Pella® Vinyl Sliding Patio Door

Enjoy a high-quality Pella vinyl patio door at a budget-friendly price. Encompass by Pella vinyl sliding patio doors glide open and closed and provide exceptional energy efficiency, helping keep your home more comfortable year-round.

  • Optional Low-E glass coating options for increased energy efficiency in your specific climate.
  • Smooth, easy-to-clean glass surface with dust-free, between-the-glass blinds and grilles.
  • Factory assembled for optimal strength and reliability.
  • Product #100007

Talk to a Pella Rep for Pricing

Encompass by Pella Sliding Patio Door Features

Design Options

Encompass by Pella vinyl products feature easy-care vinyl frames in your choice of three colors

Solid Color Frames

    • white solid color frame for 350 series windows

        White

        • almond solid color frame for 350 series windows

            Almond

            • fossil solid color frame for 250 series windows

                Fossil

              Frame Types

              New construction

              • East – Three frame types, 1-5/8" wall depth with nailing fin and 1-5/8" or 2-11/16" wall depth with J-channel. 2" and 3-3/8" overall frame depth with nailing fin.
              • West – 1-1/4" wall depth with nailing fin.

              Window replacement

              • East – 2-11/16" overall frame depth with block frame design.
              • West – Four frame types, 2-11/16" and 3-3/8" overall frame depths with block frame design, and 2-11/16" and 3-3/8" in flush flange.

              Encompass by Pella Sliding Patio Door Specs & Install Details

              • Energy-efficient, easy-care vinyl at a competitive price, backed by Pella
              • Performance rating of R35-R50 and STC of 25
              • Sliding patio doors available in sizes up 95-1/2" x 95-1/2"
              • Factory-installed, between-the-glass grilles or White blinds-between-the-glass available
              • Nail Fin installation solution
              Frame
              • Overall frame depth 4-1/2"
              • Frame members are mitered and heat fused to provide a fully welded corner assembly.
              • Interior and exterior frame surfaces extruded, rigid uPVC.
              Door panel
              • Door panel consists of extruded, rigid uPVC.
              • Panel members are mitered and heat fused to provide a fully welded corner assembly.
              • Vent panels have two adjustable rollers, set on stainless steel track cap.
              Glazing System
              • Quality float glass complying with ASTM C1036.
              • Exterior faced glazed 3/4" Tempered or Exterior faced glazed 1" tempered sealed insulating glass with Blinds-Between-the-Glass.
              Interior/Exterior
              • All panel frame members have an integral color extruded throughout the profiles.
              • All exposed PVC surfaces are smooth and uniform in appearance.
              Hardware
              • Vent panel is fully operable for ventilation.
              • All fasteners are a corrosion-resistant material compatible with PVC.
              • Door rollers are adjustable, permanently-sealed, electroplated steel with organic coated ball-bearing rollers.
              Screens
              • Full-size with black vinyl coated 18/14 mesh fiberglass screen cloth complying with ASTM D 3656 and SMA 1201 set in an aluminum frame fitted to door exterior.
              • Supplied with four adjustable rollers, latch and latch handle.

              Frequently Asked Questions

              FAQs about My Product

              FAQs about Purchasing Online

              modern living room with encompass windows on each side of a fireplace

                Encompass by Pella®

                Get easy-care vinyl windows and patio doors backed by Pella, an industry leader for nearly 100 years. Featuring high-grade vinyl for every budget, Encompass by Pella products are backed by a national network of dedicated and professionally trained service specialists.

                Compare Sliding Patio Doors
