Pella® Reserve™ – Traditional Wood Hinged Patio Door

Pella Reserve – Traditional wood and aluminum-clad wood hinged French patio doors deliver unparalleled historical detailing using butt joinery, through-stile construction and putty profiles. Personalize this wood French door with premium, period-inspired hardware from Baldwin®.

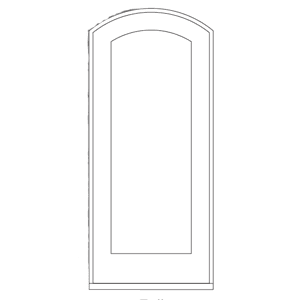

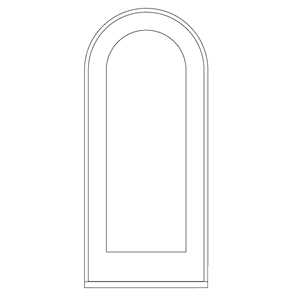

  • In-swing and out-swing styles and curved and angled shapes available with virtually unlimited customizations.
  • Innovative Integral Light Technology® grilles create the authentic look of true divided light while maintaining exceptional energy efficiency.
  • Enhance energy efficiency and sound control performance with optional triple-pane and impact-resistant glass.

Purchasing Options

Based on

Free In-Home Consultation

Limited appointments available

Schedule Consultation

Visit your Pella Showroom

There are no showrooms within 200 miles of this location.

See All Locations

Reserve - Traditional Hinged Patio Door Features

    • Unparalleled Historic Detailing

      • Nearly Endless Customizations

        • Best Limited Lifetime Warranty For Wood Patio Doors19

        Design Options

        Pella Reserve products offers exquisite wood types to enhance your home's design. And, we stand behind them with a limited lifetime warranty.

        Materials

          • pine wood

            Pine

            • unfinished mahogany corner section of a window

              Unfinished Mahogany

              • douglas fir wood window material

                Douglas Fir

              Materials

              Pella's EnduraGuard® wood protection formula has three active ingredients. This powerful combination, together with our immersion-treatment method, helps ensure strong protection on every exterior wood surface of our products. The result is advanced protection against the effects of moisture, decay and stains from mold and mildew.

              Design, Performance & Size Tables

              Specifications

              2D Cross Section

              2D Elevation

              3D & BIM

              Product Literature

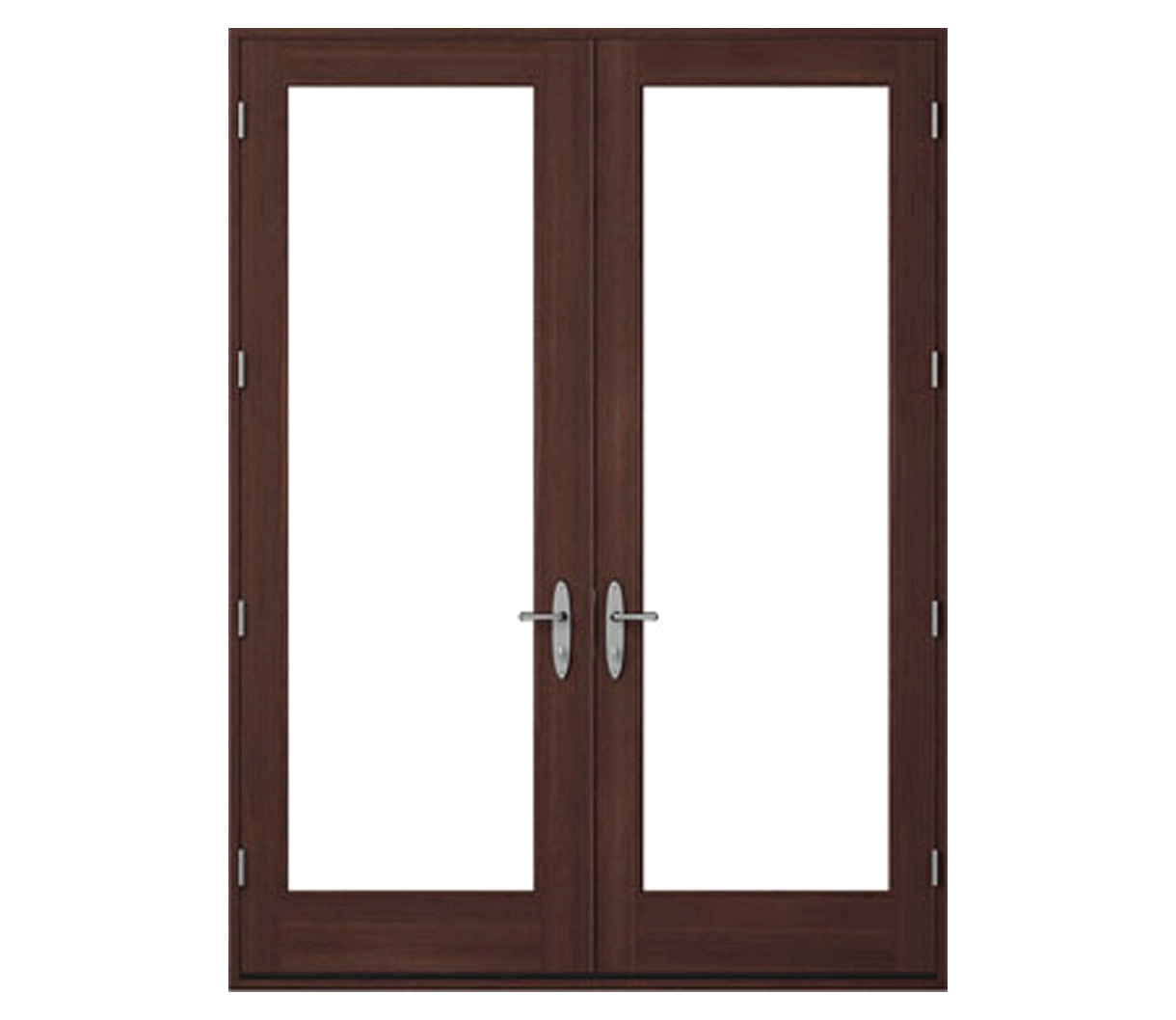

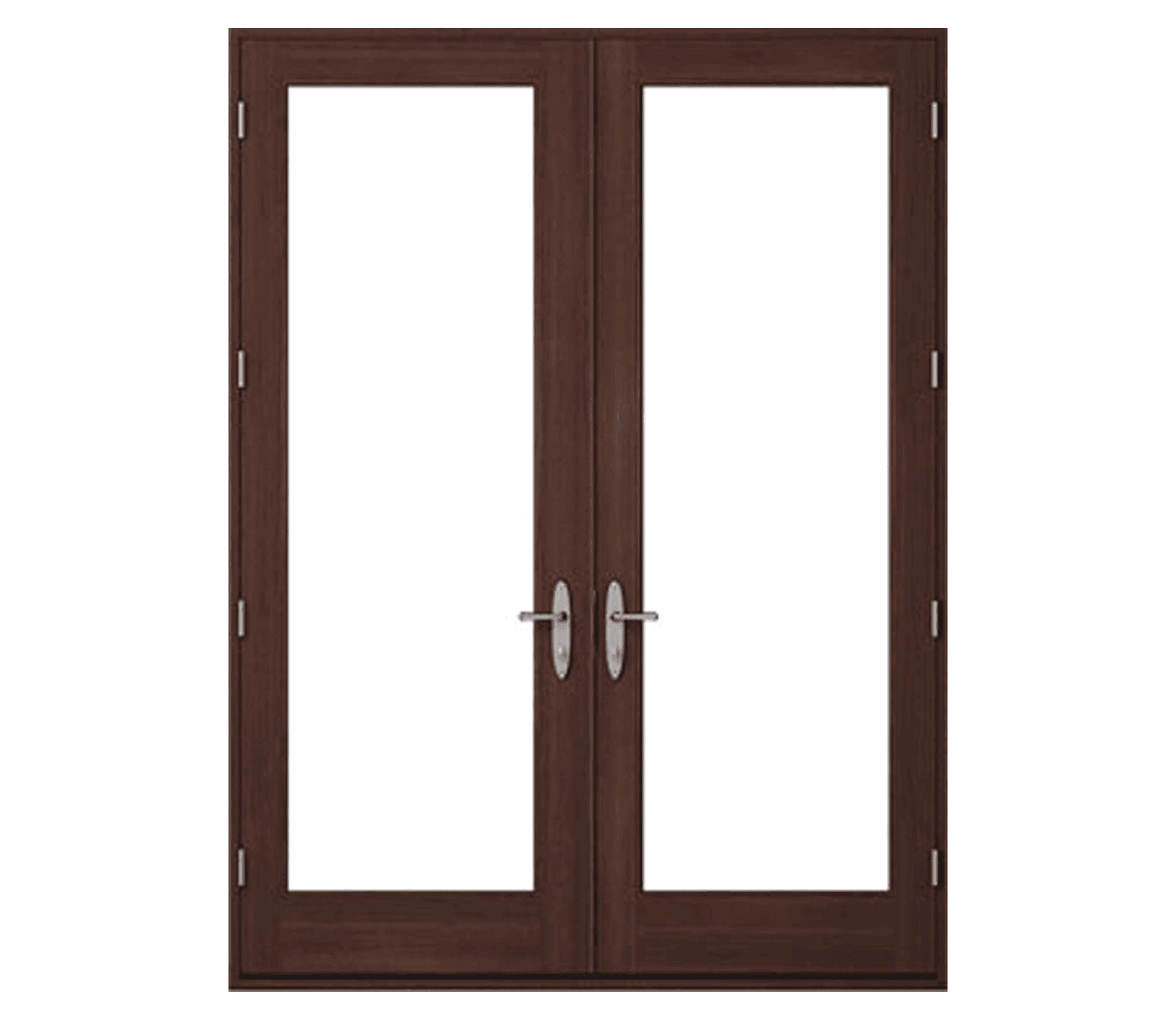

              • large hinged door cut out background illustration

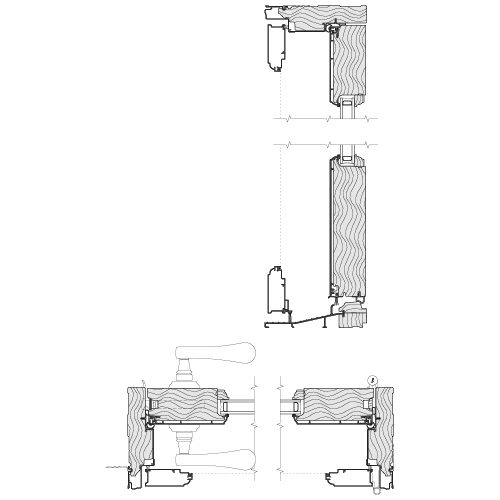

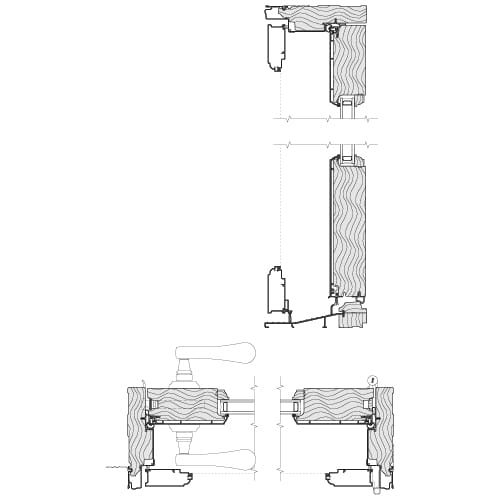

              • in-swing patio door cross section reserve traditional

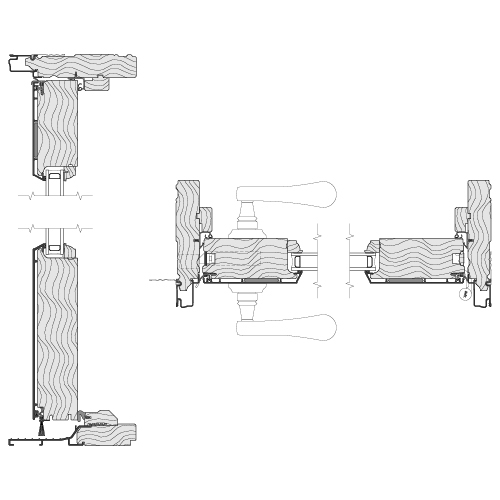

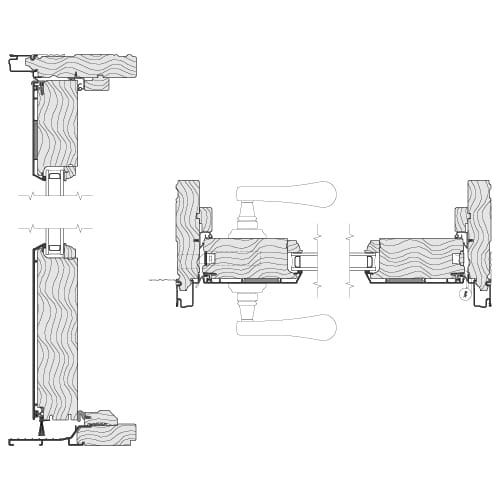

              • out-swing hinged door cross section reserve traditional

              Reserve - Traditional Hinged Patio Door Specs & Install Details

              • Butt joinery, through-stile construction and putty profiles emulate historic design elements and unparalleled historical detailing
              • Single in-swing and out-swing patio doors are available in sizes up to 48” x 119-½" in 1/8" increments.
              • Double in-swing and out-swing patio doors are available in sizes up to 96” x 119-½" in 1/8" increments.
              • In-swing patio doors meet performance rating of LC40-LC55 and STC of 31-3531
              • Out-swing patio doors meet performance rating of LC40-LC70 and STC of 30-3631
              • Installation and frame options include Fold-out Fin, Block Frame, EnduraClad Exterior Trim and Brickmould
              Frame
              • Exterior surfaces are clad with aluminum at the head and jambs.
              • Components are assembled with screws, staples and concealed corner locks.
              • Frame depth between 5-7/8" (149mm) to 8-5/8" (219mm), for wall depth between 4-9/16" (116mm) to 7-5/16" (186mm).
              • Solid extruded aluminum sill with anodized to match anodized cladding finish or Sill is 1/2" low profile.
              • Material and finish are extruded aluminum with anodized to match anodized cladding finish.
              Door panels
              • Panel hinge stiles and rails are three-ply construction, randomly finger-jointed blocks laminated with water-resistant glue and veneered on both sides.
              • Panel lock stiles are constructed with LVL core with finger-jointed edge bands on both sides and veneered on both faces.
              • Corners are urethane-silicone hybrid-sealed and secured with metal fasteners.
              • Panel thickness is 2-1/16" (52mm).
              • Panel exterior profile is ogee or putty glaze, interior profile is ogee.
              Glazing System
              • Quality fully-tempered float glass complying with ASTM C 1048.
              • Custom and high altitude glazing available.
              • Urethane-glazed 13/16" dual-seal insulating glass or Silicone-glazed 1" triple-pane, dual-seal insulating glass
              • Urethane-glazed 7/8" dual-seal impact-resistant insulating glass 1 PVB. Laminated clear exterior light.
              Hinges
              • Hinges are adjustable to help with installation.
              • Doors under 7' 0" frame height will have three hinges per panel.
              • Doors over 7' 0" frame height up to and including 8' 0" frame height will have four hinges per panel.
              • Doors over 8' 3" frame height up to and including 9' 0" frame height will have five hinges per panel
              • Doors over 9' 0" frame height will have six hinges per panel.
              Locks
              • Mortised and keyed multi-point locking system, center deadbolt and shoot-bolts at head and sill will engage simultaneously.
              • Doors 8' 0" frame height and below will have one strike at the head, one strike at the sill and one center deadbolt.
              • Doors over 8' 0" frame height up to and including 10' 0" frame height will have one strike at the head, one strike at the sill and three locking points at the stile.

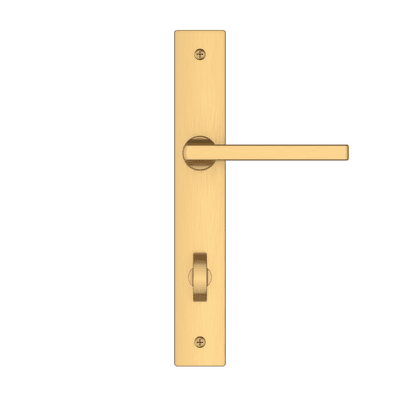

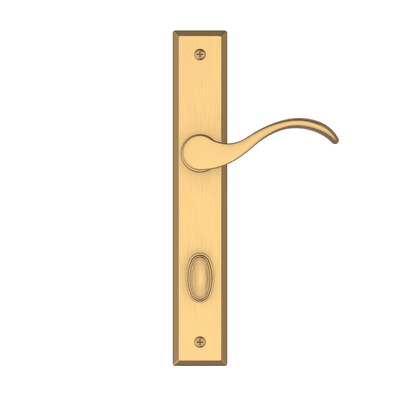

              • Solid brass handles and keylock with K-keyway cylinder.
              Screens
              • Hinged Insect Screens - Compliance: ASTM D 3656 and SMA 1201. Screen Cloth: InView™ Vinyl-coated fiberglass, 18/18 mesh fiberglass screen cloth complying with the performance requirements of SMA 1201. Extruded-aluminum frame, hinged to door frame.
              • Exterior Sliding Insect Screens - Compliance: ASTM D 3656 and SMA 1201. Screen Cloth: InView™ Vinyl-coated fiberglass, 18/18 mesh fiberglass screen cloth complying with the performance requirements of SMA 1201. Extruded-aluminum frame, top hung on 2 adjustable nylon rollers.
              reserve traditional hinged patio door one door open white trim

              Pella® Reserve™

              Made for the distinct creators, the purists of design, the architectural historians – each door is meticulously designed to achieve your vision. We deliver tailor-made solutions and intentional innovations to achieve your unique vision without concessions. From simple yet sophisticated style to historical detailing, anything less simply won’t do.
