Pella® 250 Series Vinyl Casement Window

Mulled

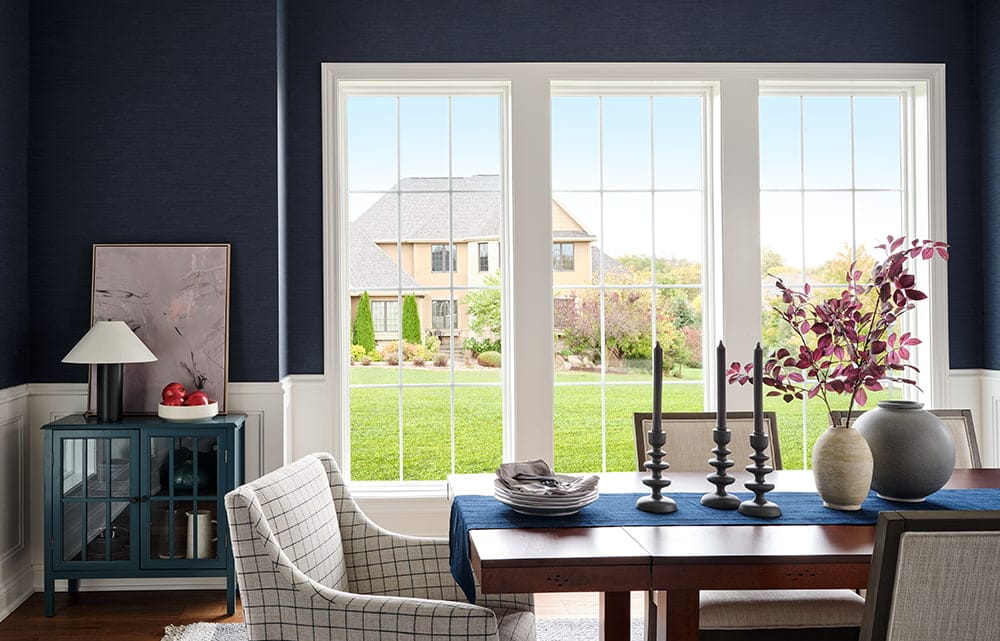

Pella 250 Series 3-wide mulled casement windows join three vinyl casement windows together in the factory. The mulled windows ship as one combined unit. Perfect for hard-to-reach places, these windows are hinged at the side and open with the turn of an easy-to-use fold-away crank. Pella 250 Series delivers exceptional energy efficiency in a low-maintenance vinyl design. Available with our most popular features and options, such as dual-color frames and grilles, personalize your casement windows to achieve a look you love for your unique home.

  • Three vinyl casement windows joined together as one unit.
  • Dual- and triple-pane glass options help make your home more comfortable and energy efficient.
  • Low-maintenance vinyl is durable and never needs repainted.

Configuration: 3-wide

Talk to a Pella Rep for Pricing

Pella 250 Series Casement Window Features

    • Fade-Resistant, High-Quality Vinyl

      • Enhanced Security and Privacy

        • Exceptional Everyday Performance

        Design Options

        Solid-color frames feature White, Almond or Fossil color on both the interior and exterior. Dual-color frames have White on the interior with Brown or Black on the exterior.

        Solid Color Frames

          • white solid color frame for 350 series windows

              White

              • almond solid color frame for 350 series windows

                  Almond

                  • fossil solid color frame for 250 series windows

                      Fossil

                    Frame

                    • Less visible sash corner seams – typical vinyl has build up.
                    • Full-frame profile with edge detailing.
                    • Our precision welding process helps prevent warping and twisting over time like ordinary vinyl can – helping eliminate "vinyl smile."
                    • Reinforced window frames are 52% stronger than ordinary vinyl.8
                    • Multi-chambered, fully-welded sash and frame improve strength and thermal performance and reduce sound transmission.
                    • Products are tested in state-of-the-art facilities.

                    Downloads & Specifications

                    Design, Performance & Size Tables

                    Specifications

                    2D Cross Section

                    2D Elevation

                    3D & BIM

                    Product Literature

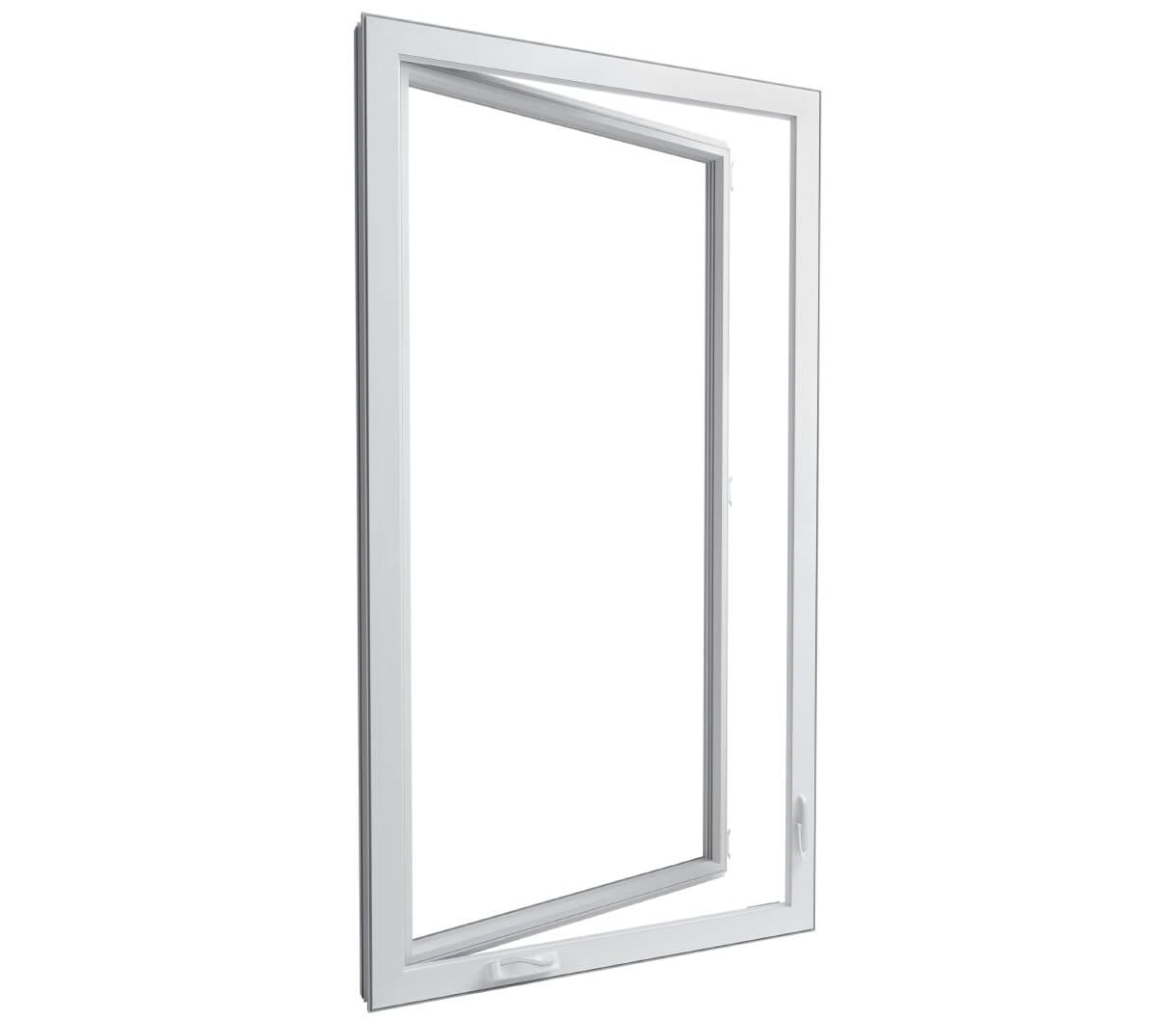

                    • 250-casement-cob-large

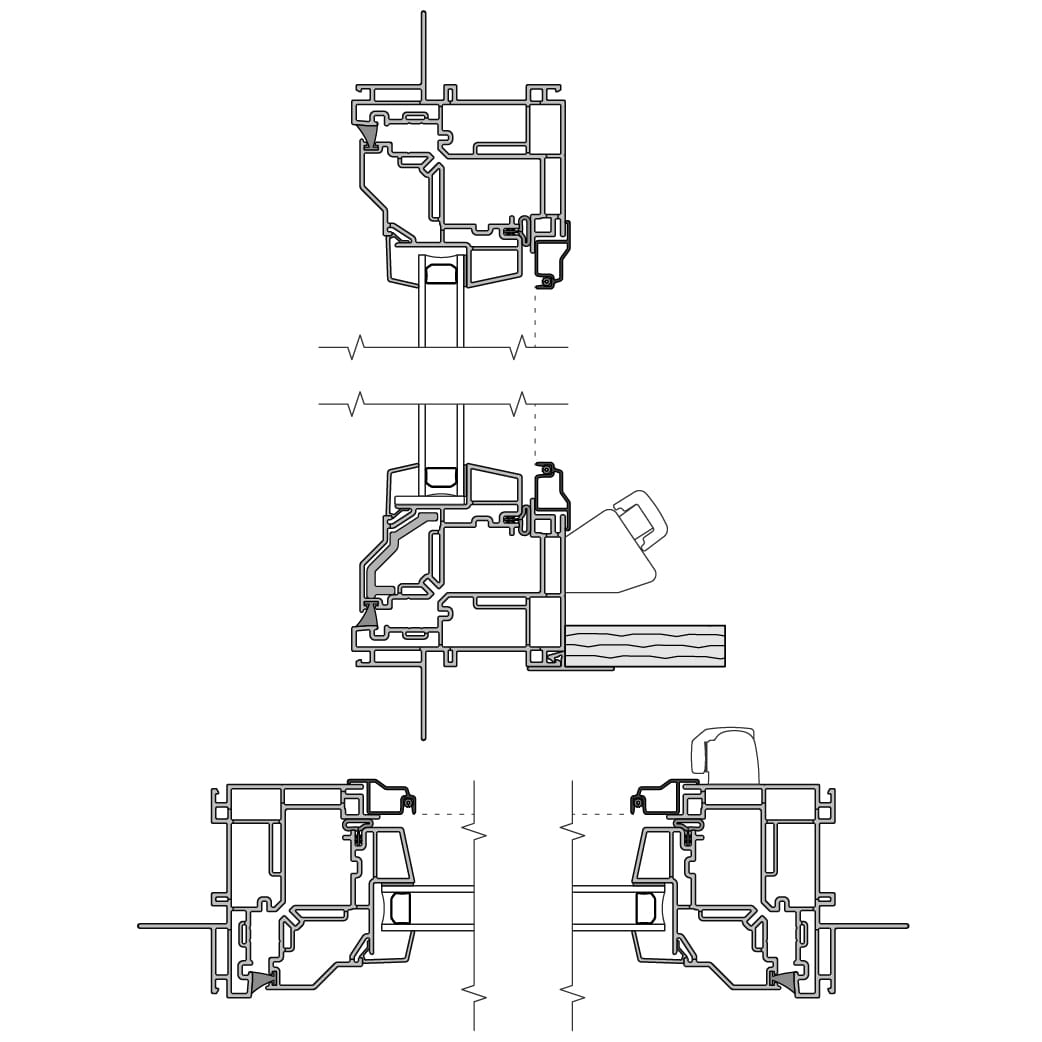

                      • 250 casement window cross section

                        Pella 250 Series Casement Window Specs & Install Details

                        • Multichambered frame and fully welded sashes improve strength and thermal performance
                        • Performance class and grade LC35-LC50 and STC of 30-33 for dual pane windows and 34 for triple-pane windows
                        • Available in sizes from 14-1/2" x 17-1/2” to 35-1/2” x 71-1/2”
                        • Low-maintenance, easy-care vinyl frames mean no more painting, staining or refinishing
                        • Installation options include Block Frame, Integral Fin, Fin with J-Channel11, Flush Flange10, 5/8" Flange Frame11
                        Frame
                        • Overall frame depth: 3-1/4" on all frame types.
                        • Frame members are mitered and heat fused to provide a fully welded corner assembly. Sill is fitted with weeps.
                        • Frame: 1-1/8" setback nail fin for 2-1/8" wall depth; Block frame for 3-1/4" wall depth; Integral 5/8" flange for 3" wall depth
                        Sash
                        • Sash members are extruded, rigid PVC, and are mitered and heat-fused to provide a fully welded corner assembly.
                        • Contains sealed insulating glass.
                        Weatherstripping

                        Vent units include weatherstripping around the sash perimeter with a fintype, pile and an extruded bulb weatherstrip.

                        Glazing System
                        • Quality float glass complying with ASTM C 1036.
                        • Exterior face-glazed sealed insulating glass.
                        • Dual-Pane insulating glass or 1" Triple-Pane
                        Hardware
                        • Multi-point unison lock with single handle is factory-installed zinc die cast. Lock tie-bars are stainless steel.
                        • Optional limited opening hardware available for vent units in extruded vinyl to match the unit; nominal 3" opening.
                        • Optional factory applied window opening control device. Device allows window to open less than 4” with normal operation, with a release mechanism that allows the sash to open completely. Complies with ASTM F2090-17.
                        Insect Screens
                        • Set in aluminum frame and fitted to interior of window.
                        • Conventional Black Fiberglass
                        • Black vinyl coated 18/16 mesh fiberglass screen cloth complying with ASTM D 3656 and SMA 1201.

                        Frequently Asked Questions

                        FAQs about My Product

                        FAQs about Purchasing Online

                        See All Window FAQs
                        250-sliding-door-beauty-couches

                          Pella 250 Series

                          Offering the most popular vinyl features and options, Pella 250 Series products feature innovative and enhanced security and privacy features, including automatically locking hardware and a tamper prevention system. Made with beautiful easy-care vinyl, they provide Pella craftsmanship in a great-looking vinyl window.
