Encompass by Pella® Vinyl Sliding Window

Encompass by Pella vinyl sliding windows deliver excellent energy efficiency in a strong and durable design. Gliding open and closed horizontally for easy access in hard-to-reach areas, Encompass by Pella sliding windows are the perfect complement to your home.

  • Solid color throughout the vinyl keeps minor dings and scratches virtually invisible.
  • Save on heating and cooling costs with options that meet or exceed ENERGY STAR® in all 50 states.1
  • Available in a variety of frame types to meet the installation requirements for almost any opening.
  • Product #100005

Talk to a Pella Rep for Pricing

Encompass by Pella Sliding Window Features

    • Budget Friendly

      • High-Quality Vinyl Resists Yellowing

        • Strong Limited Lifetime Warranty

        Design Options

        Encompass by Pella vinyl products feature easy-care vinyl frames in your choice of three colors

        Solid Color Frames

          • white solid color frame for 350 series windows

              White

              • almond solid color frame for 350 series windows

                  Almond

                  • fossil solid color frame for 250 series windows

                      Fossil

                    Frame Types

                    New construction

                    • East – Three frame types, 1-5/8" wall depth with nailing fin and 1-5/8" or 2-11/16" wall depth with J-channel. 2" and 3-3/8" overall frame depth with nailing fin.
                    • West – 1-1/4" wall depth with nailing fin.

                    Window replacement

                    • East – 2-11/16" overall frame depth with block frame design.
                    • West – Four frame types, 2-11/16" and 3-3/8" overall frame depths with block frame design, and 2-11/16" and 3-3/8" in flush flange.

                    Downloads & Specifications

                    Design, Performance & Size Tables

                    Specifications

                    2D Cross Section

                    2D Elevation

                    Product Literature

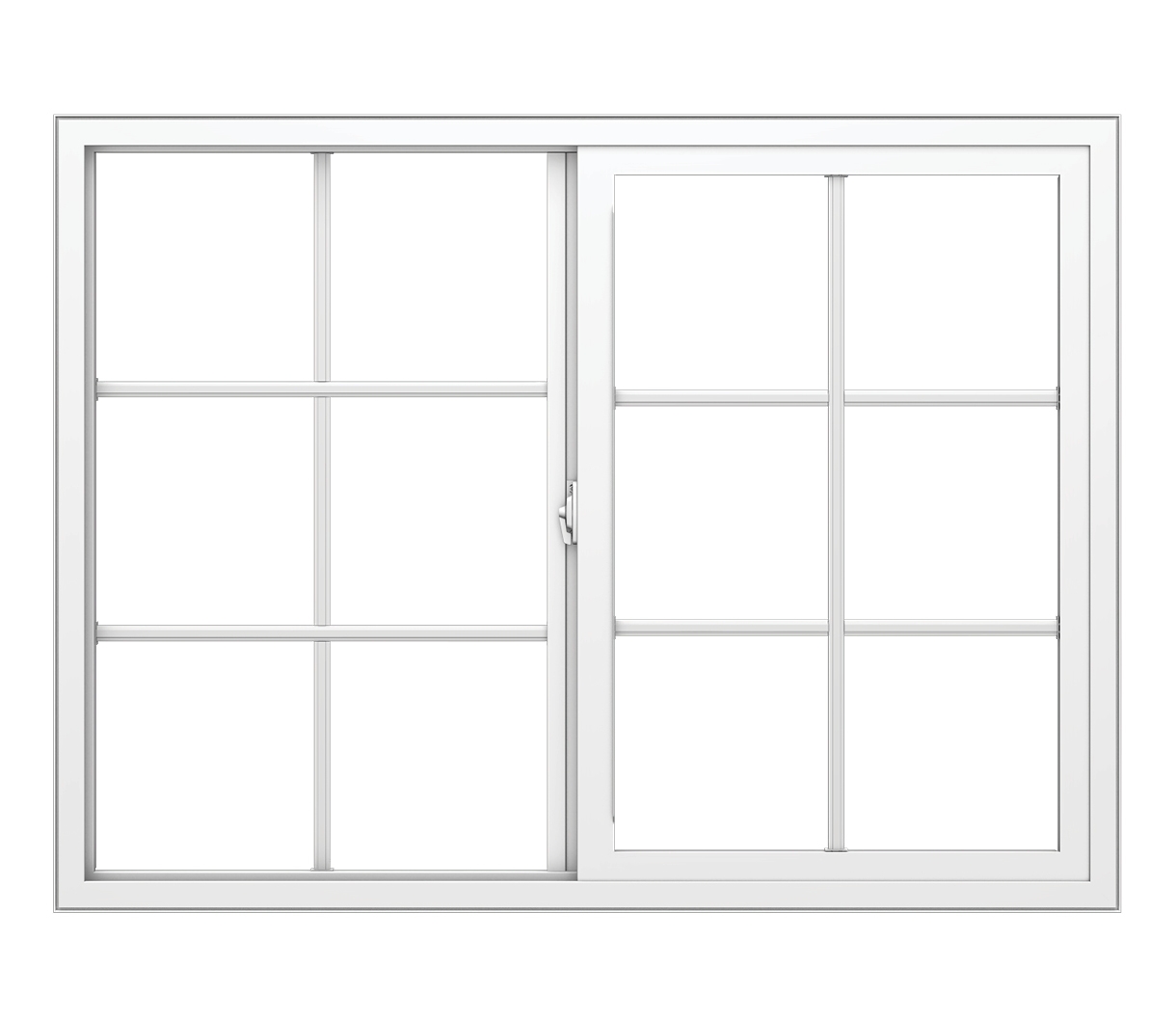

                    • encompass sliding window white

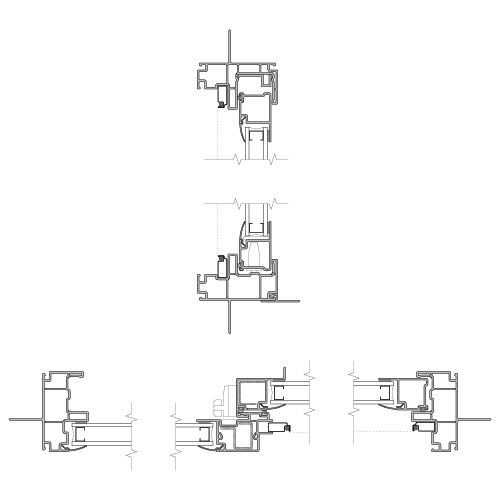

                      • encompass sliding window cross section

                        Encompass by Pella Sliding Window Specs & Install Details

                        • Competitively priced, easy-care vinyl backed by Pella
                        • Performance rating of R20-LC35 and STC of 25-26
                        • Two- and three-panel options available in operable sizes up to 95.5" x 60"
                        • Precision welding process makes a strong and more durable product that resists warping and twisting
                        • Installation options include Block Frame, Nail Fin and Nail-Fin with J-Channel; Integral 5/8" Flange available in Florida, Flush Flange also available in West region
                        Frame
                        • Overall frame depth 4-1/2". New construction frame with continuous integral fin, or replacement frame with double-wall flush flange (West region only).
                        • Frame members are mitered and heat fused to provide a fully welded corner assembly.
                        • Interior and exterior frame surfaces extruded, rigid uPVC.
                        Door panels
                        • Door panel consists of extruded, rigid uPVC.
                        • Panel members are mitered and heat fused to provide a fully welded corner assembly.
                        • Vent panels have two adjustable rollers, set on stainless steel track cap.
                        Weatherstripping
                        • Fin-type pile around perimeter of vent panel
                        Glazing System
                        • Quality float glass complying with ASTM C1036.
                        • Exterior faced glazed  or Exterior faced glazed 1" tempered sealed insulating glass with Blinds-Between-the-Glass.
                        Hardware
                        •  Exterior handle and finish is painted to match exterior.
                        • Vent panel is fully operable for ventilation.
                        • All fasteners are a corrosion-resistant material compatible with PVC.
                        • Door rollers are adjustable, permanently-sealed, electroplated steel with organic coated ball-bearing rollers.
                        Screens
                        • Full-size with black vinyl coated 18/14 mesh fiberglass screen cloth complying with ASTM D 3656 and SMA 1201 set in an aluminum frame fitted to door exterior.
                        • Supplied with four adjustable rollers, latch and latch handle.
